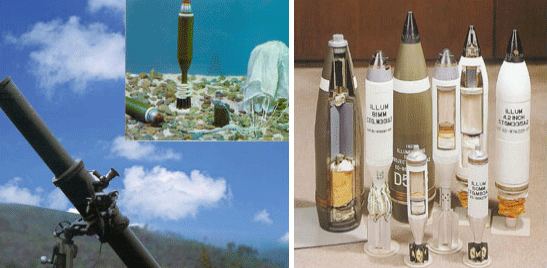

Illumination Parachute


This kind of parachute added to illumination is designed to prolong the descending and illuminating time simultaneously. the function of illuminating parachutes is to make clear area.
there are different kinds of illumination parachutes produced by Gawon in accordance with the caliber of each ammunition such as 40mm, 81mm, 105mm. 120mm, 155mm, etc.
No. Commodity Specification
1. Illuminating Mortar 60MM ， Canopy Size : 36 inches
， Gores : 8
， Material : MIL-C-498D Plain NW
                  5040-T/1A NW
， Suspension Line : 180 LBS
， Suspension Size : 25" +- 1"
， Control line Size : 24" +- 1"
2. Illuminating Mortar 81MM ， Canopy Size : 39 inches
， Gores : 8
， Material : MIL-C-498D Plain NW
                  5040-T/1A NW
， Suspension Line : 180 LBS
， Suspension Size : 30 1/2" +- 1"
， Control line Size : 39" +- 1"
3. Illuminating Mortar 100MM ， Canopy Size : 100 MM
， Gores : 8
， Material : MIL-C-498D Plain NW
4. Illuminating Mortar 106MM ， Canopy Size : 106 MM
， Gores : 8
， Material : MIL-C-498D Plain NW
5. Illuminating Mortar 120MM ， Canopy Size : 120 MM
， Gores : 24
， Material : MIL-C-7020 RIPSTOP NW
                  Tape 12MM, 30MM
                  MIL-C-3395 T/2 NW
， Looper Size : 1"
， Suspension Size : 11" +-1/2"
. Suspension Line : 5040-T/2 OG
6. Illuminating Mortar 122MM ， Canopy Size : 122 MM
， Gores : 12
， Material : MIL-C-498D Plain NW
. Suspension Line : 5040-T/1A NW
. Tape 12MM NW
， Suspension Size : 31" +-1 1/2"
7. Illuminating Mortar 125MM ， Canopy Size : 125 MM
， Gores : 8
， Material : MIL-C-498D Plain NW
8. Illuminating Mortar 130MM ， Canopy Size : 130 MM
， Gores : 24
， Material : MIL-C-7020 RIPSTOP NW
                  Tape 12MM, 30MM
                  MIL-C-3395 T/2 NW
， Looper Size : 1"
， Suspension Size : 11" +-1/2"
. Suspension Line : 5040-T/3 NW
9. Illuminating Mortar 155MM ， Canopy Size : 155 MM
， Gores : 8
， Material : MIL-C-498D Plain NW
. Suspension Line : 5040-T/3 NW
. Tape 12MM
， Suspension Size : 100" +-2"
10. Illuminating Mine
11. Illuminating Mortar 38MM ， Canopy Size : 38 MM
， Wire : 14 inches
， Gores : 8
， Material : MIL-C-498D Plain NW
                  5040-T/2 NW Core
                  Wire 0.8 mm
                  Cilp 0.8 mm
12. Illuminating Mortar 26.5MM ， Canopy Size : 26.5 MM
， Wire : 14 inches
， Gores : 8
， Material : MIL-C-498D Plain NW
                  5040-T/2 NW Core
                  Wire 0.8 mm
                  Cilp 0.8 mm
， Hang : 30-35 grams
