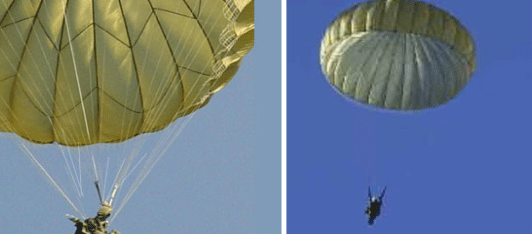

Parachute, Personnel, Troop-Back, Type T-10C Main (Non-Steerable)



National Stock Number : 1670-01-248-9502 (Non Steerable)
Part Number : 11-1-564-2

THE ASSEMBLY CONSISTS OF
PART NO COMPONENTS
11-1-1501-2 35FT. Diameter Canopy with Anti-inversion Net
11-1-2149-1 Risers
56D6276 Deployment Bag with Static Line
62J4342 Pack Tray (Main Pack)
11-1-2143-1 Harness Assembly with Ejector Snap & Canopy Release

TECHNICAL SPECIFICATION
Canopy Shape
Parabolic
Canopy Diameter 35ft. (Nominal)
Canopy Gores (Number) 30
Canopy Material MIL/PIA-C-7020, T/1, 1.1oz Ripstop Nylon (0-5 CFM)
Standard Color Olive Green
Suspended Line (Material) MIL/PIA-C-5040, T/2 (T/S ; 400LB)
Suspended Line (Length) 30/25.5FT
Forward Speed 5.4 M/s (15f/s)
Maximum Suspended Weight 300LB
Minimum Deployment Altitude 152M (500ft) AGL
Maximum Deployment Speed 278km (150kts)
Assembly Weight 13kg (29lb)
Age Life 16.5 Years
Service Life 12 Years
