▶ Home > Product > Parachute |
|

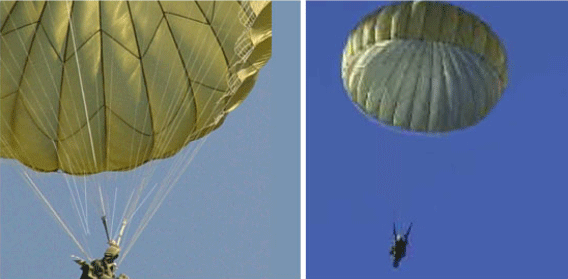

| Parachute, Personnel,
Troop-Back, Type T-10B Main (Non-Steerable) |
| |
 |
| |
National Stock Number
: 1670-00-591-0720 (Non Steerable)
Part Number : 11-1-564-1
|
THE ASSEMBLY
CONSISTS OF
| PART
NO |
COMPONENTS |
| 11-1-1501 |
35FT.
Diameter Canopy with Anti-inversion
Net |
| 11-1-2149-1 |
Risers |
| 56D6276 |
Deployment
Bag with Static Line |
| 62J4342 |
Pack
Tray (Main Pack) |
| 11-1-2143-1 |
Harness
Assembly with Ejector Snap & Canopy
Release |
TECHNICAL SPECIFICATION
| Canopy
Shape |
Parabolic |
| Canopy
Diameter |
35ft.
(Nominal) |
| Canopy
Gores (Number) |
30 |
| Canopy
Material |
MIL/PIA-C-7020,
T/1, 1.1oz Ripstop Nylon (80-120 CFM) |
| Standard
Color |
Olive
Green |
| Suspended
Line (Material) |
MIL/PIA-C-5040,
T/2 (T/S ; 400LB) |
| Suspended
Line (Length) |
30/25.5FT |
| Forward
Speed |
5.4
M/s (15f/s) |
| Maximum
Suspended Weight |
300LB |
| Minimum
Deployment Altitude |
152M
(500ft) AGL |
| Maximum
Deployment Speed |
278km
(150kts) |
| Assembly
Weight |
13kg
(29lb) |
| Age
Life |
16.5
Years |
| Service
Life |
12
Years |
|
|
|
|
|
|
 |
|
