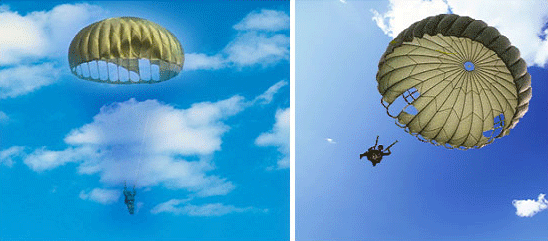

Parachute, Personnel, Troop-Back, Type MC1-1C Main (Steerable)


National Stock Number : 1670-00-262-2359
Part Number : 11-1-900-2
THE ASSEMBLY CONSISTS OF
PART NO COMPONENTS
11-1-1501-3 35FT. Diameter Canopy with Anti-inversion Net
11-1-2149-1 Risers
56D6276 Deployment Bag with Static Line
62J4342 Pack Tray
11-1-2143-1 Harness Assembly with Ejector Snap & Canopy Release

TECHNICAL SPECIFICATION
Canopy Shape
Parabolic
Canopy Diameter 35ft. (nominal)
Canopy Gores (Number) 30
Canopy Material MIL-C-44378, T/1, Low Porosity Nylon (0-3 CFM)
Standard Color Olive Green
Suspended Line (Material) MIL-C-5040, T/2 (T/S ; 400LB)
Number Suspended Line Length 30/22FT
Forward Speed 4.5 M/s (15f/s)
Suspended Maximum Weight 300LB
Rate of Turn 360' in 8-9 Seconds
Minimum Deployment Altitude 150M (500ft) AGL
Maximum Deployment Speed 278km (150kts)
Assembly Weight 13kg (29lb)
