▶ Home > Product > Parachute |
|

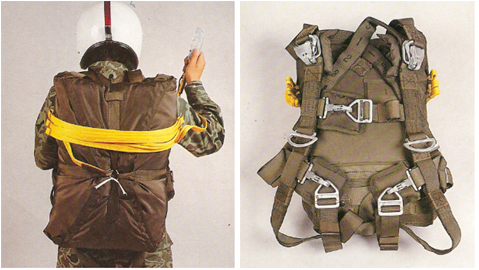

| Parachute, Personnel,
Troop-Back,Type T-10 Main (Non-Steerable) |
| |
 |
| |
National Stock Number
: 1670-00-753-3727
Part Number : 59E6228-2 |
THE ASSEMBLY
CONSISTS OF
| PART
NO |
COMPONENTS |
11-1-1501 |
35FT.
Diameter Canopy (Olive Green) |
11-1-2149 |
Risers |
56D6276 |
Deployment
Bag with Static Line |
62J4342 |
Pack
Tray |
11-1-2143-1 |
Harness
Assembly with Ejector Snap &
Canopy Release |
TECHNICAL SPECIFICATION
Canopy
Shape
|
Parabolic |
Canopy
(Gore) Diameter |
35
feet. (10.7m, Nominal) |
Number
of suspension lines |
30 |
| Canopy
Material |
1.1
oz. PIA-C-7020, Type I Ripstop Nylon
Parachute Cloth. |
Standard
Color |
Olive
Green |
| Suspended
Line (Material) |
PIA-C-5040,
T/II, Tensile strength 400lb (181.8kg) |
Suspended
Line (Length) |
25
feet. 6 in. (7.8m) |
Maximum
jump wind Speed |
15
mph (13 knots) |
Maximum
Suspended Weight |
360LB
(163kg) |
Descent
Rate |
Avg.
22 feet/sec (6.7m/s) |
Minimum
Deployment Altitude |
152M
(500ft) |
| Maximum
Deployment Speed |
173
mph (150knots) |
Assembly
Weight |
13kg
(29lb) |
Age
Life |
16.5
Years |
Service
Life |
12
Years |
|
|
|
|
|
|
 |
|
