¢º Home > Product > Parachute
°¡¿øÀÎÅͳ»¼Å³Î(ÁÖ)

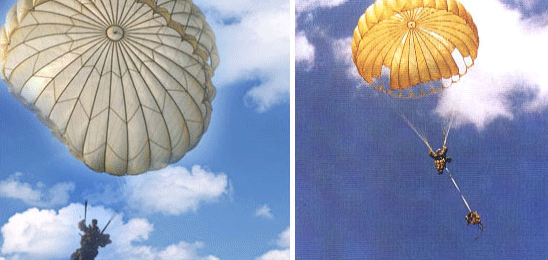

Parachute, Personnel, Troop-Back, Type MC1-1B Main (Steerable)



National Stock Number : 1670-00-598-0751 (Steerable)
Part Number : 11-1-900-1

THE ASSEMBLY CONSISTS OF
PART NO COMPONENTS
11-1-1501-1 35FT. Diameter Canopy with Anti-inversion Net
11-1-2149-1 Risers (2 each)
56D6276 Deployment Bag with Static Line
62J4342 Pack Tray (Main Pack)
11-1-2143-1 Harness Assembly with Ejector Snap & Canopy Release

TECHNICAL SPECIFICATION
Canopy Shape Parabolic
Canopy Diameter 35ft. (Nominal)
Canopy Gores (Number) 30
Canopy Material MIL/PIA-C-7020, T/1, 1.1oz Ripstop Nylon(80-120 CFM)
Standard Color Olive Green
Suspended Line (Material) MIL/PIA-C-5040, T/2 (T/S ; 400LB)
Number Suspended Line Length 30/25.5FT(7.8m)
Forward Speed 5.5 M/s
Maximum Suspended Weight 300LB
Rate of Turn 360' in 8.8 Seconds
Minimum Deployment Altitude 152M (500ft) AGL
Maximum Deployment Speed 278km (150kts)
Assembly Weight 13kg (29lb)
Age Life 16.5 Years
Service Life 12 Years
