▶ Home > Product > Parachute |
|

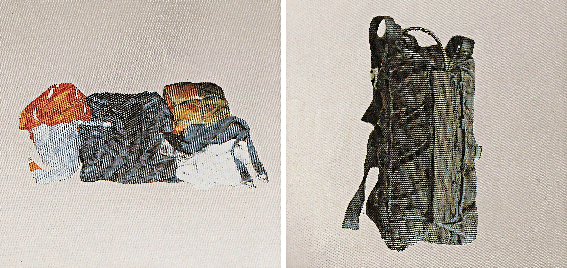

| Parachute, Personnel,
Back Type B-12 & B-20 |
| |
 |
| |
National Stock Number
: 1670-00-805-9037(B-12), 1670-00-805-9037(B-20)
Part Number : 59C7024-19 (B-12), 50C7024-20
(B-20)
|
THE ASSEMBLY
CONSISTS OF
| COMPONENTS |
PART
NO |
PART
NO |
| B-12 |
B-20 |
| C-9
Canopy |
50E6877-2 |
50E6877-3 |
| Pilote
Chute (Ma-1) |
53J7205 |
53J7205 |
| Harness |
59J6706 |
59J6706 |
| Pack
A'ssy |
52J6231 |
56J6126 |
| Riser |
59C6704-3 |
64D2162-4 |
| Bridle |
55D6153 |
55D6153 |
| Pad
Cushion6 |
49J6059 |
49J6059 |
| Disc
A'ssy |
53B7106 |
53B7106 |
| Ripcord
A'ssy |
62C4252-1
|
62C4252-1
|
TECHNICAL SPECIFICATION
| Suspended
Load |
300
LBS |
300
LBS |
| Weight(APP) |
26
LBS |
31
LBS |
| Decent
Rate |
5.5
m/sec |
5.5
m/sec |
| Rate
of Turn |
360
0 in 10 sec |
360
0 in 10 sec |
| Shape |
Flat
Circular |
Flat
Circular |
| Canopy
Diameter |
28
ft.(Nominal) |
28
ft.(Nominal) |
| No.
of Canopy GoreS |
28 |
28 |
| No.
of Suspension Line |
28 |
28 |
| No.
of Panels Per Gore |
5 |
5
|
| No.
of Vent Lines |
14
|
14
|
| No.
of Suspension Line |
28 |
28 |
| Length
of Suspension Line |
22
ft 10 in |
22
ft 10 in |
|
|
|
|
|
|
 |
|
