1. ALKALINE BATTERY

ALKALINE BATTERY
   SIZE : AAA(LR03) / AA(LR6) / D(LR20)
   GRADE : General / Ultra

SPECIFICATION
   Classification : Alkaline
   Chemical System : Zinc-Manganese Dioxide (Zn/MnO2)
   No added Mercury (Hg), Cadmium (Cd) & Lead (Pb)
   Nominal Voltage : 1.5 volts
   Storage Temperature : 10~30¢ªC
   Jacket : Printed Plastic Label

SERVICE LIFE TEST
Size "AA" (LR6 type)
Load Daily period End
Voltage
General
grade
Ultra
grade
10¥Ø 1hr/day 0.9 19.0 hrs 19.5 hrs
1.8¥Ø 15sec/min, 24hrs/day 0.9 620 cycle 660 cycle
3.9¥Ø 1hr/day 0.8 6.5 hrs 7.7 hrs
24¥Ø 15se/min, 8hrs/day 1.0 46.0 hrs 47.0 hrs
43¥Ø 4hrs/day 0.9 90.0 hrs 93.0 hrs
1000mA 10sec/min, 1hr/day 0.9 330 cycle 380 cycle
1.5W 2sec 0.65W28sec, 5min/hr 24hrs/day 1.05 60 cycle 75 cycle
250mA 1hr/day 0.9 7.5 hrs 8.2 hrs
- Lot release service life testing is conducted by 10¥Ø continuous & 1.8¥Ø Cycle discharging to 0.9V.
- The batteries shall not leak during the service life test before the end voltage reached.
- The load resistor, including all parts of the external circuit, shall be within ¡¾0.5% of the value stated.
the value stated.
Size "D" (LR20 type)
Load Daily period End
Voltage
General
grade
Ultra
grade
2.2¥Ø Continuous 0.9 15.0 hrs 17.0 hrs
2.2¥Ø 1h 0.8 16.0 hrs 21.0 hrs
1.5¥Ø 4min/15min, 8h/day 0.9 10.0 hrs 11.5 hrs
2.2¥Ø 4min/1h, 8h/day 0.9 16.0 hrs 20.0 hrs
600mA 2h 0.9 14.0 hrs 15.5 hrs
10¥Ø 4h 0.9 100.0 hrs 115.0 hrs
- Lot release service life testing is conducted by 2.2¥Ø continuous discharging to 0.9V.
- The batteries shall not leak during the service life test before the end voltage reached.
- The load resistor, including all parts of the external circuit, shall be within ¡¾0.5% of the value stated.

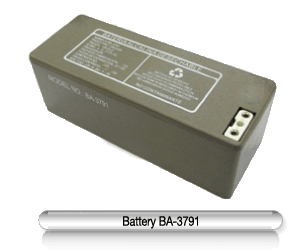

2. ALKALINE BATTERY - BA-3791


The BA-3791 is engineered and designed for use in a world-wide tactical environment,
it exceed Military Standards MIL-B-49030(EL)

¡Ü Durable high impact plastic housing and connector enclosure
¡Ü Coated cell pack for operation in tropical environments
¡Ü High reliability due to all welded construction
¡Ü Unit contains safety vented cell

SPECIFICATION

Description

Requirements

For Use in

PRC-80, PRC-730, PRC-2200

Replacement for

TNC-2188

Number and type of cells

60pcs "AA" alkaline cells

Nominal voltage

15V

Maximum battery voltage (O.C.V.)

16.5V

Connection

Serial and parallel

Socket

2-hole socket

Case material

Enfored ABS

Maximum weight

1.65kg

Dimensions

L186.5 ¡¿ W72 ¡¿ H64.8 (mm)

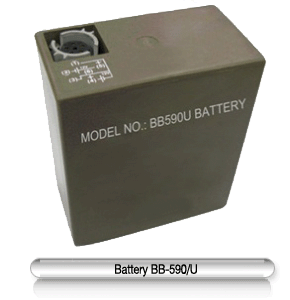

3. Battery BB-590/U


The BB-590/U meets the Military Standards MIL-B-49436/1B(ER).
These packs consists of High Capacity Nickel-Cadmium batteries. Superior performance
to ordinary packs due to our quality batteries used.


SPECIFICATION

Description

Requirements

For Use in

PRC-104, PRC-119, PRC-138, KY-57 and other equipment

Replacement for

BB-390A/U, BB-390B/U, BB-2590/U, BB-490/U, BA-3590/U,BA-5290/U, BA-5390/U, BA-5590/U and variants.

Number and type of cells

20pcs "5/4 SC" Nickel-Cadmium cells

Cell capacity

2400mAh High Capacity cells

Nominal voltage

12V*2

Storage temperature

-40 to 55 degrees Celsius

Operating temperature

-20 to 55 degrees Celsius

Terminals

Gold plated terminals (see picture)

Case material

Gold plated terminals (see picture)

Maximum weight

1.45kg

Dimensions

L111.76 ¡¿ W62.23 ¡¿ H127(mm)

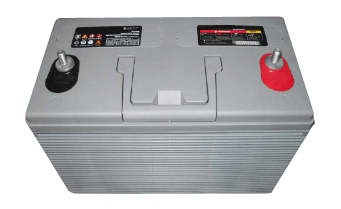

  4. SEALED LEAD ACID BATTERY

FEATURES
¡Ü Flame Arrestor
- First Safety Device for flameproof
¡Ü Precision Safety Valve
- Genuine Part of Gas Recombination
- Constant Inner Pressure Control
- Second Safety Device for flameproof
¡Ü Reinforced PP Container
- Protection for Shock or Swelling
¡Ü Positive/Negative Plate
¡Ü AGM (Absorbent Glass Mat) Separator
¡Ü Handle
- Easy Carry, Installation and Replacement

SPECIFICATION
Type Voltage Capacity (AH) Dimension Weight
(kg)
Terminal
20HR
1.75V/Cell
10HR
1.75V/Cell
5HR
1.60V/Cell
1HR
1.60V/Cell
L W H TH
KB12-12 12 12 11.16
10.2 7.44 151 98 95 101 3.56 T2
KB18-12 12 18 16.74 15.3 11.16 181.5 77 167.5 167.5 5.32 T3
KB26-12 12 26 24.18 22.1 16.12 166.5 175 125 125 8.6 T3
KB33-12 12 33 29.75 27.20 18.6 195 130 164 180 11.0 T5
KB35-12 12 35 32.65 29.75 21.7 195 130 164 180 12.0 T5
KB40-12 12 40 38 33 23 197 165 170 170 13.8 T6
KB55-12 12 57 55 47 34 228 138 208 216 19.0 T6
KB65-12 12 68 65 56 40 325 167 174 174 22.2 T6
KB75-12 12 83 80 73 52 348 167 178 199 27.0 T4
KB80-12 12 83 80 73 52 330 172 210 231 27.0 T4
* The specification subject to change without notice.

5. Zinc Carbon Battery

SPECIFICATION

ITEM NO

DISCHARGE TIME
(3.9§Ùcontinue discharge,
CUT OFF VOLT:0.9V.)
PACKING G.W.(kgs) N.W.(kgs)

CTN MEAS.(cm)

R20/2B FOIL JACKET

630MIN 2PCS BLISTER CARD, 20 PCS/10 CARDS/INNER BOX, 120 PCS/60 CARDS/CARTON 12.5 11

48.5*19*19.5

R14/2B FOIL JACKET 270MIN 2PCS BLISTER CARD, 20 PCS/10 CARDS/INNER BOX, 160 PCS/80 CARDS/CARTON 8.5 7 31*28.5*19.5
R6/4B FOIL JACKET 100MIN 4PCS BLISTER CARD, 40 PCS/10 CARDS/INNER BOX, 720 PCS/180 CARDS/CARTON 12.5 11 28*26.5*28
R03/4B FOIL JACKET 38MIN 4PCS BLISTER CARD, 40 PCS/10 CARDS/INNER BOX, 960 PCS/240 CARDS/CARTON 9 7.5 27.5*26.5*30.5
R20/2B PVC JACKET 630MIN 2PCS BLISTER CARD, 20 PCS/10 CARDS/INNER BOX, 120 PCS/60 CARDS/CARTON 12.5 11 48.5*19*19.5
R14/2B PVC JACKET 270MIN 2PCS BLISTER CARD, 20 PCS/10 CARDS/INNER BOX, 160 PCS/80 CARDS/CARTON 8.5 7 31*28.5*19.5
R6/4B PVC JACKET 90MIN 4PCS BLISTER CARD, 40 PCS/10 CARDS/INNER BOX, 720 PCS/180 CARDS/CARTON 12.5 11 28*26.5*28
R03/4B PVC JACKET 38MIN 4PCS BLISTER CARD, 40 PCS/10 CARDS/INNER BOX, 960 PCS/240 CARDS/CARTON 9 7.5 27.5*26.5*30.5
6F22/1B METAL JACKET 1PCS BLISTER CARD, 10 PCS/10 CARDS/INNER BOX, 400 PCS/400 CARDS/CARTON 17 16.5 53*27.5*37.5
3R12/1B PAPER JACKET 270MIN 1PCS BLISTER CARD, 10 PCS/10 CARDS/INNER BOX, 120 PCS/120 CARDS/CARTON 15.5 14 34*27.5*28
