▶ Home > Product > Portable
Antenna |
|
| |
|
| |
|
NSN : 5985-32-062-6475 (5
Segment)
NSN : 5820-00-242-4967 (7 Segment) |
|
|
|
| DESCRIPTION |
The AT-271/PRC is
a compact tactical antenna designed for use with portable
man pack radio systems. It is constructed of seven light
weight, brass tubes. A stairless steel cable threaded
through the sections holds them together when the antenna
is folded for storage. With the assistance of a tension
spring, the same cable holds all the sections together
wen the antenna is erected. This type of construction
contributes to the antenna's ligh : weight, compact ability
and portablility.
The AT-271/PRC is usually employed with the AB-591PRC-25
rigid base mourt, available separately. |
| |

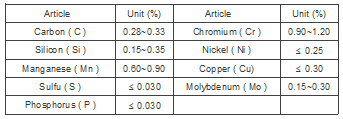

| MATERIAL DETAILS |
1. Antenna Section
- Alloyed Tube SCM430
2. Tube, Stopper, Ring - Copper H59 |
| |
| SPECIFICATION |
- Operating frequency range : VHF 30~108 MHz
- Maximum power : 70w
- Polarization : Vertical
- Length (antenna deployed) : 288 cm aprox.
- Conrector : Male, screw of 3/8" - 24 UNF |
|
|
 |
|
